Main Uses: VOD refining furnace is making oxygen blowing.decarbonization,vacuum degassing,and alloy composition adjustment under vacuum,and it is mainly used for refining ultra-low carbon steel and electro iron,etc.VD refining furnace can degas liquid steel and adjust alloy composition under the condition of vacuum.
Main Features: VD/VOD refining furnace can use separate working position and double working position;vacuum tank can be installed in the overhead way,pit way,or vehicular;the transferring way of vacuum tank can adopt screw or car movement.

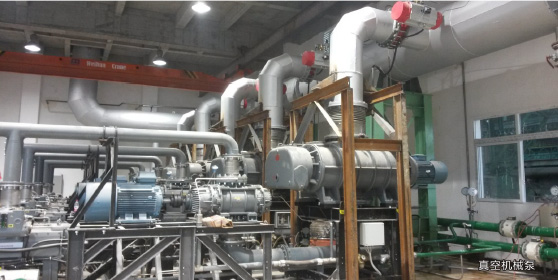

Device Components: Vacuum tank,tank cover and lifting system of cover,ladle,oxygen lance,vacuum feeding device, temperature sampling and observation systems,oxygen,argon gas system,cooling water system,vacuum pump.
The main technical parameters
| Capacity t | Inner Dia.of furnace shell mm | Exhaust capacity (67Pa)Kg/h | Capacity t | Size of Tank mm |
| Rated/Max | ||||
| VD/VOD-15 | 2200 | 120~150 | 15~18 | Ф3800X4100 |
| VD/VOD-25 | 2600 | 150~180 | 25~28 | Ф4000X4600 |
| VD/VOD-30 | 2700 | 180~200 | 30~35 | Ф4200X5175 |
| VD/VOD-40 | 2900 | 220~260 | 40~45 | Ф4800X5300 |
| VD/VOD-50 | 3000 | 260~280 | 50-55 | Ф5300X5400 |
| VD/VOD-60 | 3150 | 300~360 | 60~65 | Ф5300X5500 |
| VD/VOD-70 | 3200 | 350~370 | 70~80 | Ф5400X5600 |
| VD/VOD-80 | 3300 | 360~380 | 80~90 | Ф5500X5700 |
| VD/VOD-90 | 3400 | 380~400 | 90~100 | Ф5600X5800 |
| VD/VOD-100 | 3500 | 400~450 | 100~110 | Ф5600X5800 |
| VD/VOD-120 | 3600 | 480~500 | 120~130 | Ф6200X6400 |
| VD/VOD-150 | 3900 | 550~600 | 150~160 | Ф6300X6600 |
