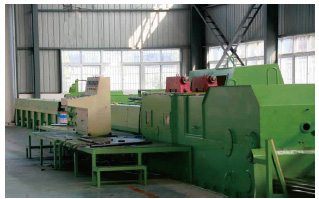

LG-120-H冷轧管机

Technical Data of Tube Cold Rolling Machine Model LG-120-H

No.	Description		Unit	Tube Cold Rolling Machine Model
No.	Description		Unit	LG-120-H
1	Hollow size	0.D.	mm	Φ90~170
		W.T.	mm	6~20
		Length	m	2.5~6
2	Tube size	0.D.	mm	Φ75~150
		W.T.	mm	4~18
		Length	m	≤18
3	Max.elongation ratio of rolling			Depending on the material
4	Max. nominal rolling force		t	380
5	Stroke rate of roller carriage		str./min	30~60
6	Stroke length of roller carriage		mm	1103
7	Length of hollow feed		mm	2~12
8	Rotating angle of hollow during feed		Deg.	45~75
9	Dia. of roller		mm	Φ520
10	PCD of gear driving roller		mm	Φ420、Φ434、Φ448、Φ462
11	Length of connecting rod		mm	3300
12	Radius of crank		mm	550
13	Offset distance between crank and slider		mm	320
14	Center height of hollow		mm	1000
15	Total transmission ratio			13.8
16	Power of main motor		KW	250
