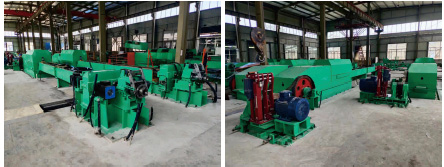

LG-50-H冷轧管机

Technical Data of Tube Cold Rolling Machine Model LG-50-H

No.	Description		Description	Tube Cold Rolling Machine Model
No.	Description		Description	LG-50B-H
1	Hollow size	0.D.	mm	Φ35~70
		W.T.	mm	2~7
		Length	m	1.5~5
2	Tube size	0.D.	mm	Φ22~60
		W.T.	mm	1.5~6
		Length	m	≤15
3	Max.elongation ratio of rolling			Depending on the material
4	Max. nominal rolling force		t	100
5	Stroke rate of roller carriage		str./min	50~90
6	Stroke length of roller carriage		mm	752
7	Length of hollow feed		mm	2~10
8	Rotating angle of hollow during feed		度	45~75
9	Dia. of roller		mm	Φ300
10	PCD of gear driving roller		mm	Φ260、Φ270、Φ280
11	Length of connecting rod		mm	2200
12	Radius of crank		mm	375
13	Offset distance between crank and slider		mm	190
14	Center height of hollow		mm	750
15	Total transmission ratio			10
16	Power of main motor		KW	75
